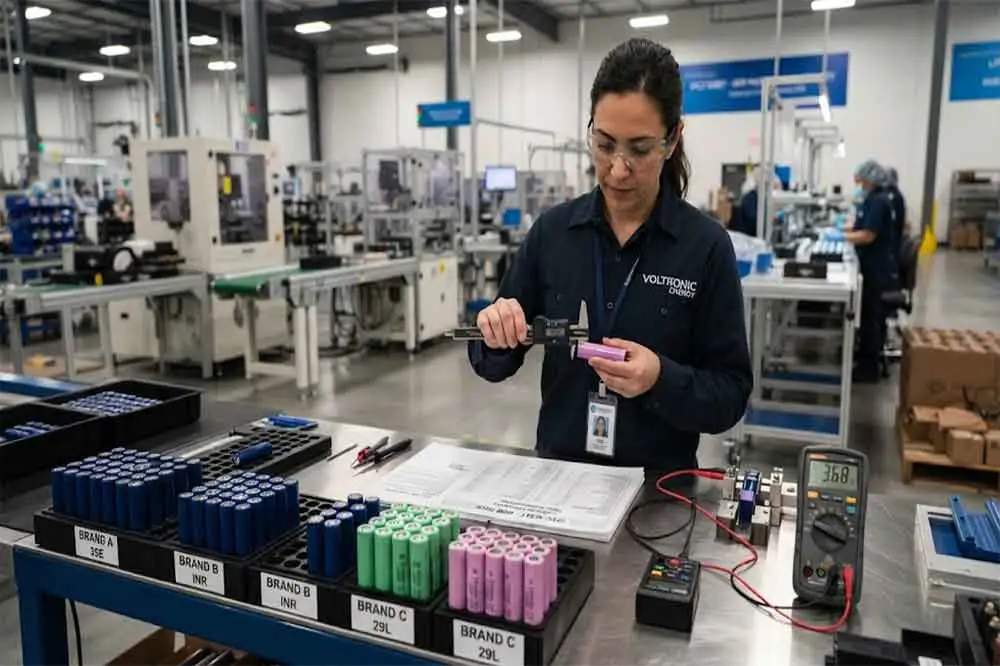

Choosing 18650 cell for OEM battery pack is not simply a matter of finding the highest capacity.A battery pack may need high discharge current, long runtime, compact dimensions, stable performance, or a specific terminal design. In real OEM projects, the cell has to match the application, pack configuration, BMS, mechanical space, thermal design, and production requirements at the same time.That is why cell selection should happen before the battery pack design is finalized.This guide explains how to choose standard 18650 cells for OEM battery packs and what battery buyers, engineers, and procurement teams should check before placing a bulk order.1. Start With the ApplicationThe application should determine the cell selection.A flashlight, portable medical device, industrial instrument, power tool, and e-bike battery pack may all use 18650 cells, but their requirements can be very different.For example, a portable electronic device may prioritize capacity and compact size. A power tool can place much more emphasis on discharge current and temperature rise.Before selecting the cell, define:Required pack voltageRequired capacityContinuous discharge currentPeak discharge currentExpected runtimeAvailable installation spaceOperating temperatureCharging requirementsExpected cycle lifePack weight limitationsThis information provides the starting point for selecting an appropriate 18650 cell.2. Check the Nominal Voltage FirstMost standard 18650 lithium-ion cells used in OEM packs have a nominal voltage around 3.6V or 3.7V, depending on the cell chemistry and manufacturer’s specification.The fully charged voltage is commonly around 4.2V for conventional lithium-ion cells.The important point is that the pack voltage is determined by the number of cells connected in series.For example:ConfigurationNominal VoltageMaximum Voltage5S18.0–18.5V21.0V7S25.2–25.9V29.4V10S36.0–37.0V42.0V13S46.8–48.1V54.6V14S50.4–51.8V58.8VThe exact values depend on the cell specification and the nominal voltage used by the manufacturer.For a deeper explanation of series and parallel design, see 18650 Battery Series and Parallel: Understanding S and P Configurations.3. Choose Capacity Based on the Real RequirementCapacity is usually specified in mAh or Ah.Common 18650 capacities may include 2000mAh, 2500mAh, 2600mAh, 3000mAh, 3200mAh, and 3500mAh, although available specifications vary by cell model.A higher-capacity cell can provide more energy from the same number of cells. But capacity should not be considered alone.Suppose an OEM project needs approximately 12Ah.Using a 3000mAh cell:3000mAh × 4 = 12,000mAhSo four cells in parallel can provide approximately 12Ah.Using a 3500mAh cell:3500mAh × 4 = 14,000mAhThe second option provides more capacity with the same parallel count, but that does not automatically make it the better choice. The cell’s discharge capability, internal resistance, dimensions, price, availability, and production consistency also matter.For a detailed capacity comparison, see Standard 18650 Battery Capacity: 2000mAh, 2600mAh, 3000mAh or 3500mAh?4. Capacity and Discharge Current Are DifferentThis is one of the most important points when selecting OEM 18650 cells.A high-capacity cell is not necessarily a high-discharge cell.A cell designed around high energy density may have a different discharge specification from a cell designed for high-power applications.Consider two simplified choices:Cell TypeCapacityDischarge RequirementHigh-capacity cell3500mAhModerate currentHigh-discharge cell2500–3000mAhHigher currentFor equipment that operates at relatively low current for a long period, a higher-capacity cell may be suitable.For a power tool, motor system, or other high-load application, discharge capability can become more important than maximum capacity.The final selection should always be based on the manufacturer’s actual continuous and pulse discharge specifications rather than capacity alone.For more detail, see High Capacity vs High Discharge 18650 Batteries and 18650 Battery Discharge Current: What Buyers Should Check.5. Calculate the Required Pack CurrentThe cell must support the current required by the complete battery pack.For a simplified parallel configuration:Pack current capability ≈ cell current capability × number of cells in parallelFor example, suppose a cell is rated for 10A continuous discharge and the pack uses four cells in parallel:10A × 4 = approximately 40AThis is only a simplified calculation.Real pack design also depends on temperature, cell aging, BMS current limits, nickel or busbar design, connection resistance, enclosure cooling, and the manufacturer’s discharge conditions.A battery manufacturer should therefore verify the complete system rather than selecting cells from a single current number.6. Check Energy, Not Just AhCapacity tells you how much charge the battery stores. Energy gives a more useful picture of how much work the battery can provide.A simple calculation is:Energy (Wh) ≈ Nominal Voltage (V) × Capacity (Ah)For example:36V × 12Ah ≈ 432WhThe actual usable energy can be lower because of discharge conditions, cutoff voltage, temperature, load profile, aging, and other system factors.This is particularly important for OEM projects where the customer has a target runtime or energy requirement.For a more detailed explanation, see How Much Energy Does an 18650 Battery Hold? A Simple Wh Guide.7. Check the Physical DimensionsElectrical specifications are only half of the selection process.The cell must physically fit inside the battery pack.The term “18650” describes the approximate cylindrical cell size, but manufacturers can have differences in actual dimensions, terminals, insulation, and construction.A typical 18650 cell is approximately 18mm in diameter and 65mm long, but the complete installed dimensions need to be confirmed from the cell datasheet.Check:Cell diameterCell lengthPositive terminal designFlat top or button topInsulation sleeveCell holder requirementsWelding areaPack enclosure dimensionsA few millimeters can matter when dozens of cells are arranged inside a compact enclosure.For this reason, OEM buyers should provide drawings or dimensional restrictions whenever possible.See 18650 Battery Dimensions: What Does 18650 Really Mean? for more information.8. Flat Top or Button Top?Terminal design can affect the mechanical and electrical design of an OEM pack.Flat-top cells have a relatively flat positive terminal and are commonly used in battery packs with dedicated interconnection structures.Button-top cells have a raised positive terminal and are frequently found in applications where direct device contact is expected.For an OEM battery pack, the important question is not simply which type is more common.The question is:Which terminal design matches the pack structure and connection method?Check the battery holder, nickel strip, busbar, spot-welding process, insulation structure, and available space before confirming the cell.For a detailed comparison, see Flat Top vs Button Top 18650 Batteries: What’s the Difference?9. Internal Resistance MattersInternal resistance affects voltage drop, heat generation, and load performance.When current flows through a cell, resistance causes power loss:Power loss ≈ I² × RThis means that resistance becomes increasingly important as current increases.For example, a cell with higher internal resistance may experience more voltage sag under heavy load and generate more heat.OEM buyers should therefore ask suppliers about:DC internal resistanceTesting methodTest temperatureTesting state of chargeCapacity test conditionsProduction batch consistencyInternal resistance should not be compared blindly between suppliers. The measurement method needs to be consistent.10. Cell Matching Is Critical for Pack ProductionUsing cells with the same nominal capacity does not necessarily mean the cells are perfectly matched.For multi-cell battery packs, manufacturers may need to control differences in:CapacityInternal resistanceVoltageSelf-discharge behaviorProduction batchCell ageGood matching helps the cells behave more consistently during charging and discharging.This becomes especially important for larger packs containing many cells.For example, a 13S4P pack contains:13 × 4 = 52 cellsThe more cells a pack contains, the more important production consistency becomes.11. Consider High-Capacity vs High-Discharge CellsThere is often a trade-off between energy density and power capability.A high-capacity cell can help reduce the number of parallel cells needed for a target Ah rating.A high-discharge cell may be more appropriate when the application requires high current.The correct choice depends on the application.High-capacity cells may suit:Portable electronicsLong-runtime equipmentBackup powerModerate-load industrial devicesHigh-discharge cells may suit:Power toolsMotor-driven equipmentHigh-current devicesApplications with short periods of heavy loadThis is a design decision, not simply a specification comparison.12. Think About Temperature and Thermal DesignBattery cells generate heat during charging and discharging.Heat generation can increase with current and internal resistance.For a compact OEM battery pack, there may be limited space for heat dissipation. Cell selection should therefore be considered together with the enclosure, airflow, insulation, BMS settings, and expected operating environment.Ask the battery manufacturer to evaluate:Maximum operating temperatureCharging temperature rangeDischarging temperature rangeExpected temperature risePack ventilationThermal insulationContinuous and peak load conditionsA cell that performs well in a laboratory test may behave differently inside a tightly packed enclosure.13. Match the Cell With the BMSThe BMS is part of the complete battery system.The selected cell and BMS should work together in terms of:Number of series cellsOvercharge protectionOver-discharge protectionOver-current protectionShort-circuit protectionTemperature monitoringBalancing strategyContinuous current ratingFor example, a 10S pack requires a BMS designed for a 10-series configuration.The BMS cannot compensate for an unsuitable cell.Cell selection, BMS design, interconnection, charging, and thermal management should be treated as one system.14. Check the Cell’s Production ConsistencyOEM production is different from buying a few cells for testing.A prototype may require only dozens of cells, while mass production may require thousands or more.The cell supplier should therefore be able to provide stable specifications across production batches.Important information can include:Cell modelNominal capacityNominal voltageDischarge ratingInternal resistanceDimensionsProduction date or batch informationTest reportDatasheetSafety documentationFor long-term OEM projects, consistency between the approved sample and later production batches is especially important.15. Do Not Select a Cell From the Datasheet AloneDatasheets are necessary, but prototype testing is still important.A practical OEM evaluation can include:Capacity testingInternal resistance testingDischarge testingCharging testingTemperature monitoringPhysical dimension verificationPack assembly testingBMS compatibility testingRuntime testingAging or cycle testing where requiredThe goal is to verify that the selected cell works in the actual battery design.A cell that looks suitable on paper may require a different configuration after prototype testing.16. Consider Supply Stability Before Mass ProductionA good cell for an OEM project also needs to be available consistently.Changing the cell model after the battery pack has entered production can affect:Pack dimensionsCapacityCurrent performanceBMS settingsMechanical designCertificationProduction processesProduct documentationFor this reason, procurement teams should discuss expected annual volume and production schedule with the battery supplier before finalizing the cell model.A cell that is suitable for a prototype but difficult to source later can create problems for the finished product.17. What Should OEM Buyers Send to a Battery Manufacturer?A clear RFQ makes cell selection much faster.Instead of asking only for “18650 battery cells,” provide the main technical requirements.A useful OEM inquiry can include:Application: industrial equipment / power tool / portable electronics / e-bike / otherTarget voltage: for example, 36V or 48V classTarget capacity: for example, 10Ah or 20AhMaximum continuous current: for example, 20APeak current: if applicableMaximum dimensions: length × width × heightExpected annual quantity: estimated units per yearCell preference: high capacity / high discharge / open to recommendationBMS: required or customer suppliedConnector: required typeCertification: required market or product standardSample quantity: number of prototype packsProduction target: expected mass-production dateA drawing, existing battery photo, or old battery specification can make the discussion even clearer.18. Common Cell Selection MistakesChoosing the highest mAh numberMaximum capacity is not always the correct specification.The application may require much higher discharge capability.Ignoring internal resistanceResistance can affect voltage sag and heat, especially under heavy loads.Checking only one sampleOne good sample does not prove production consistency.Ignoring dimensionsA cell that cannot fit the enclosure is not a practical OEM choice.Mixing different cell modelsMixing cells with different characteristics can create inconsistent pack behavior.Selecting the BMS laterThe BMS should be considered during pack design, not added as an afterthought.Focusing only on the cell priceFor OEM projects, the total cost also includes pack construction, BMS, connectors, testing, certification, assembly, logistics, and possible redesign costs.19. A Simple OEM Cell Selection ProcessThe selection process can be simplified into seven steps:Application → Electrical requirements → Cell specifications → Physical design → Prototype testing → Production validation → Bulk supplyThis approach prevents a common problem: selecting a cell first and trying to make the rest of the battery pack fit around it.For OEM battery manufacturing, the better approach is to define the system requirements first and then select the cell.20. Final Checklist for Choosing 18650 CellsBefore approving an 18650 cell for an OEM battery pack, check:Nominal voltageFull-charge voltageCapacityContinuous discharge currentPeak discharge currentInternal resistanceDimensionsTerminal typeCell chemistryOperating temperatureCharging temperatureCell matching requirementsBMS compatibilityPack configurationProduction consistencyTesting documentationSupply availabilitySample performanceMass-production requirementsThe “best” 18650 cell is not simply the cell with the largest capacity or highest current rating.It is the cell whose electrical, mechanical, thermal, and supply characteristics match the complete battery pack.For OEM buyers, that means cell selection should be made together with pack configuration, BMS design, mechanical structure, testing, and production planning.Once these requirements are clear, an experienced battery manufacturer can recommend a suitable 18650 cell and build the pack around the actual application.
