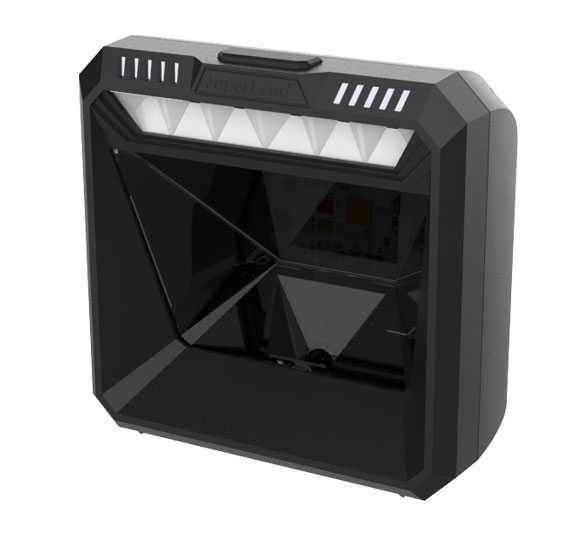

Superlead Presentation Optical Barcode Reader 7708
Super large scanning window

self-induction image reading

Megapixel, scanning sensitive

Support 6m / s sports reading

Low power consumption and powerful performance

Omni-directional Read main 1D,2D barcode

Details of Superlead Bioptical Optical Bar Reader 7708
New hardware upgrade, equipped with 1.38 million pixel scanning lens.

Super large scanning window, no need to focus, self-induction image reading.

Big vision sensor, large reading range, Easy to read long bar code

Support sports reading, up to 6M/S, sensitive scanning

Support barcode reading without backlight

Multi-languages direct transfer.

The optical barcode scanner can scan 1D/2D barcodes, support screen codes, as : packaging, labels, express waybill, wechat, alipay, etc.

Application scenarios

shopping malls, supermarkets, restaurants, tea shops, small and micro stores, warehousing and logistics, customer service front desk, etc

Specification of Superlead Bioptical Barcode Reader 7708
Suzhou SuperMax Smart System Co., Ltd. 7708
Technical Specification
Physical Characteristics
Dimensions: 152mm x 149mm x 80mm
Weight: 376g
Voltage: 5 VDC
Current: 500mA(Operating)
Performance Characteristics
Image(Pixels): 1280 p(H) x 1080 p(V)
Light Source: illumination: 617nm RED LED
Fielg of View: 45° (H) x 35° (V)
Roll/Pitch/Yaw: Pitch ±65° /Yaw 360° /Roll ±60°
Motion Tolerances: max. 6m/s / up to 6 meters per second
Print Contrast: ≥25%
Interfaces Supported: USB, RS232
Minimal Resolution: 4mil
Decode Capability: 1-D: UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, etc.
2-D: QR Code, MicroQR, PDF417, MicroPDF417, Data Matrix, Maxicode, Aztec, etc.
User Environment
Operating Temperature: 0℃-50℃
Storage Temperature: -40℃-70℃
Humidity: 0% to 95% relative humidity, non-condensing
Shock Specifications: Designed to withstand 1.2m (5') drops
Ambient Light lmmunity: 100.000 Lux.
Decode Ranges
Code 39 (5mil): 0mm-60mm
100% UPC-A (13mil): 0mm-200mm
Performance may be impacted by bar code quality and environmental conditions.
