Small size and compact structure
Long service life and high reliability
Optional levers and terminals
Generally applicated in home appliances, gaming control, and industry control

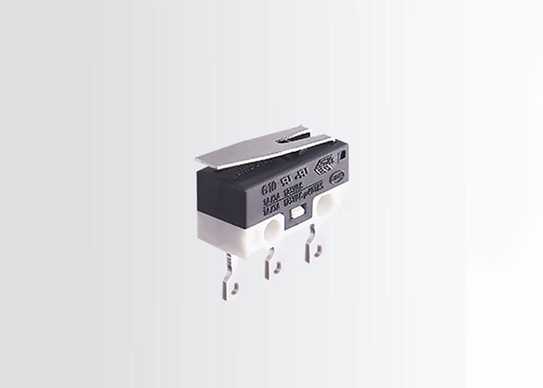

Specifications of Small Micro Switch G10
Place of Origin Guangdong, China (Mainland)
Brand Name Unionwell
Model Number G10 Series
Max Operating  Force (at pin plunger) 150gf Max
Terminal Type Mold Lead Wires/Solder/PCB
Lever Type No Lever/Hinge/Leaf
Circuit Code SPDT/SPST-NO/SPST-NC
Certifications ENEC, UL/cUL, CQC
OEM/ODM Available
Rating P1 0.1A  48VDC/VAC (Gold plated optional)
03 1A/3A 125VAC
Operating Frequency Electrical 10~30 cycles/minute
Mechanical 120 cycles/minute
Contact Resistance(Initial Value) 100mΩ Max (Depends on P/Ns)
Insulation Resistance (at 500VDC) At 500VDC,100MΩ Min
Dielectric strength AC 600V RMS (50-60HZ)
Storage Temperature -40℃-+85℃
Storage  Humidity 85%RH Max
Life Expectancy Electrical 6,000~100,000 cycles (Depends on P/Ns)
Mechanical 1,000,000 cycles (5,000,000 cycles Optional)
Unit Net Weight About 0.5g (Straight PCB type without lever)

Unionwell, as an excellent micro switch manufacturer, offers a wide range of micro switch for you to choose from.
