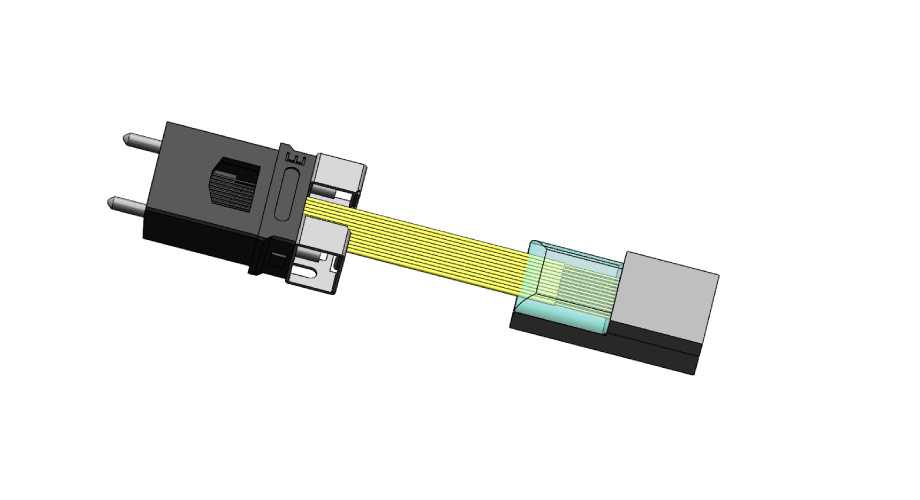

Polarization Maintaining Optical Fiber Array Features
Fiber count: Up to 64

Core Pitch: 127μm, 250μm or Customer specified

Pitch Tolerance:<0.5μm

Stress rod orientation: Any

Stress rod orientation error: < 3°

PER: >18dB

How Polarization Maintaining Fiber Alignment Works
Polarization-maintaining fiber, or the so-called pm fiber array and PMF fiber, can normally ensure the direction of linear polarization and effectively improve the coherent signal-to-noise ratio. Capable of realizing the high-precision measurement of physical quantity, PMF fiber is widely used in interferometric fiber optic sensor, which is theoretically based on optical coherent detection, fiber optic gyro and fiber optic hydrophone. Thus, in order to expand the use of polarization maintaining fiber and increase the dosage of products, it is better to integrate PM fiber into fiber array alignment.
