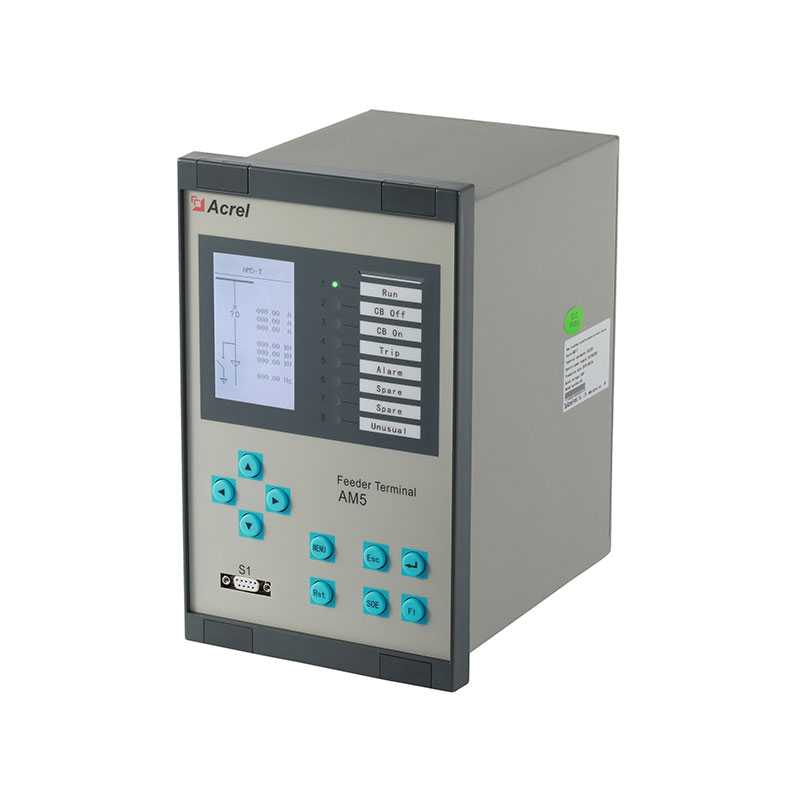

AM5 Medium Voltage Protection Relays

Acrel middle voltage protection relay has the protection functions of power distribution system such as line protection, transformer protection, motor protection, capacitor protection, bus tie/incoming line backup automatic switching, etc. AM series undervoltage relay provide guarantee for the reliable and stable operation of the power supply and distribution system.

Technical Parameter of AM5 Medium Voltage Motor Protection Relay
Auxiliary power supply Rated input AC220V/DC220V,DC110V,DC48V
Range Rated Voltage*(1±20%)
Power consumption ≤10W（DC）
Rated voltage Rated input AC100V
Range 1~120V
Accuracy ±0.5%
Power consumption ≤0.5VA
Rated current Rated input AC5A/1A
Range 0.04ln~15ln
Accuracy ±0.5%
Power consumption ≤0.5VA
Frequency Rated frequency 50Hz or 60Hz
Range 45Hz~55Hz or 60Hz
Accuracy ±0.1Hz
Environment Temperature -10℃~55℃
Humidity 5%~95%
Altitude ≤4000m
Insulating property Insulation resistance ＞100MΩ
Dielectric strength Power frequency voltage withstand 2kV
Impulse voltage ±5kV
